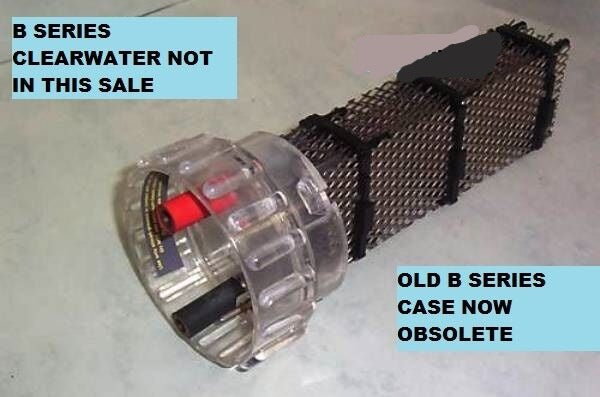

The Clear Cell Head bayonet cap shown on the first photo is a B-Series Original Cell B200 B270 TS190 Bayonet cap LS4000 Hydromaster BH4000& BH7000
7 plates each 155mm in length
All cells are made from heavy duty 10,000 hour grade ruthenium/titanium material

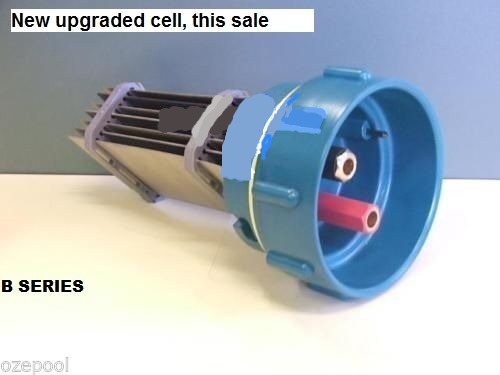

The replacement cell is as per the Blue cap one which is 100% compatible The cell will be replaced repaired in the first 2 years if any manufacture defects are visible There will then be a 3 year pro-rata warranty based on the RRP at that time
Standard Cells B Series and C Series
B has a bayonet head & C has a screw on head
B140 or C140 15amp Length of plates 120mm
B170 & C170 18amp Length of plates 146mm
B270 B200 & C270 C200 21 amp Length of plates 166mm
B330 B250 & C330 C250 26 amp Length of plates 200mm
note longer plate measurements
2 Years replacement warranty
Direct Dropship Delivery
